Details
EB4-B
Long Description

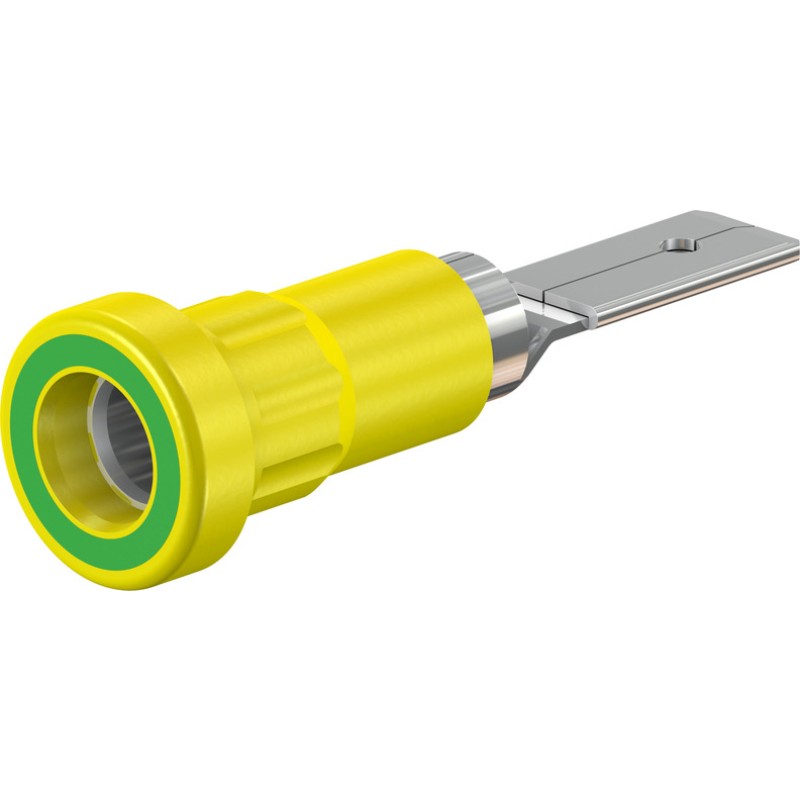

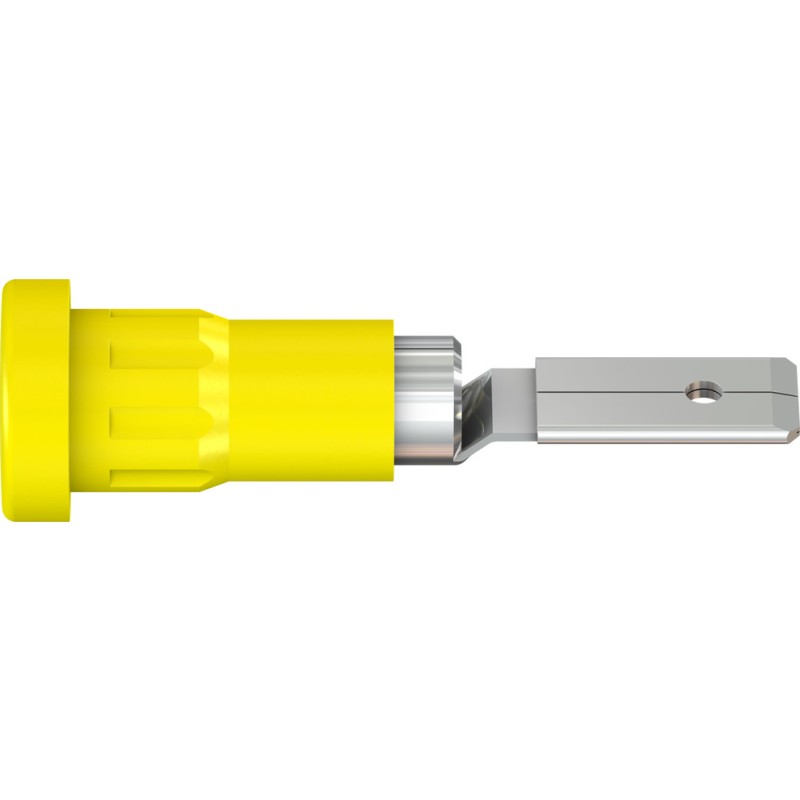

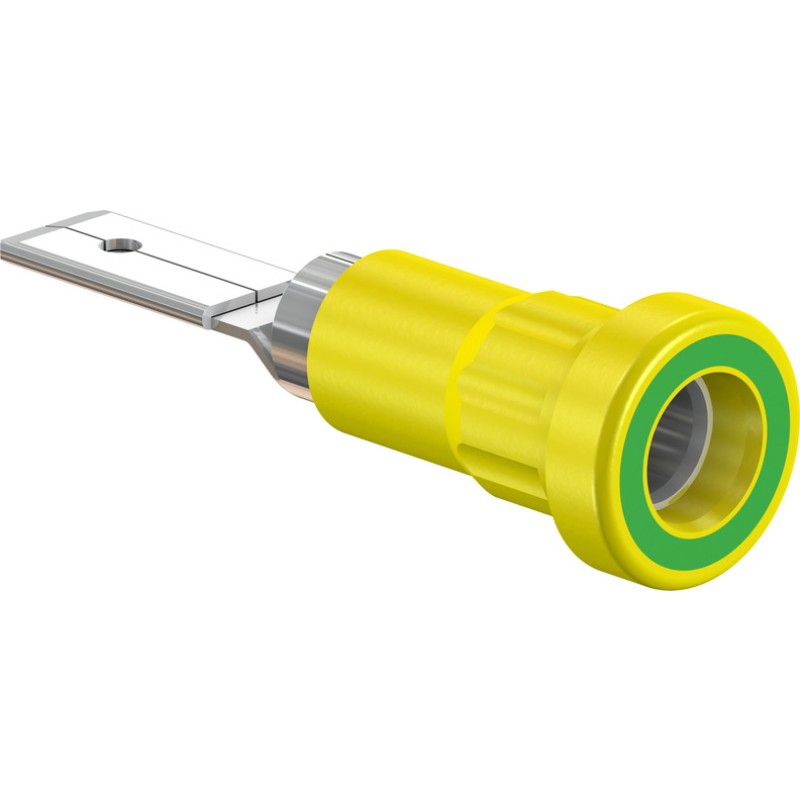

Insulated, Ø 4 mm, rigid. Brass sheet, punched and rolled. The socket is pressed into predrilled panels of plastic, metal etc.Flat connecting tab 4.8 mm x 0.8 mm, can be bent to 90°, once only.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 23.1015-20 |
| Manufacturer | STAUBLI |
| Type | Eb4-b |
| Model | 4mm Socket Green-yellow |
| Colour | 20 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 103 |
