Details
66.9032-21
Long Description

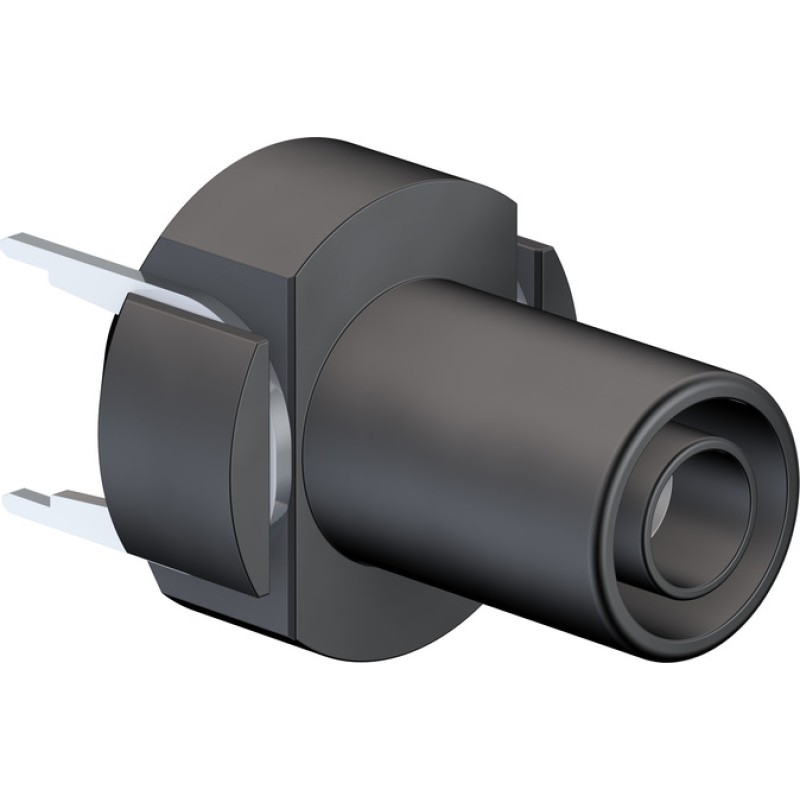

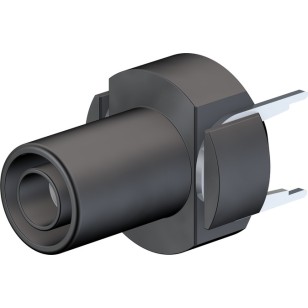

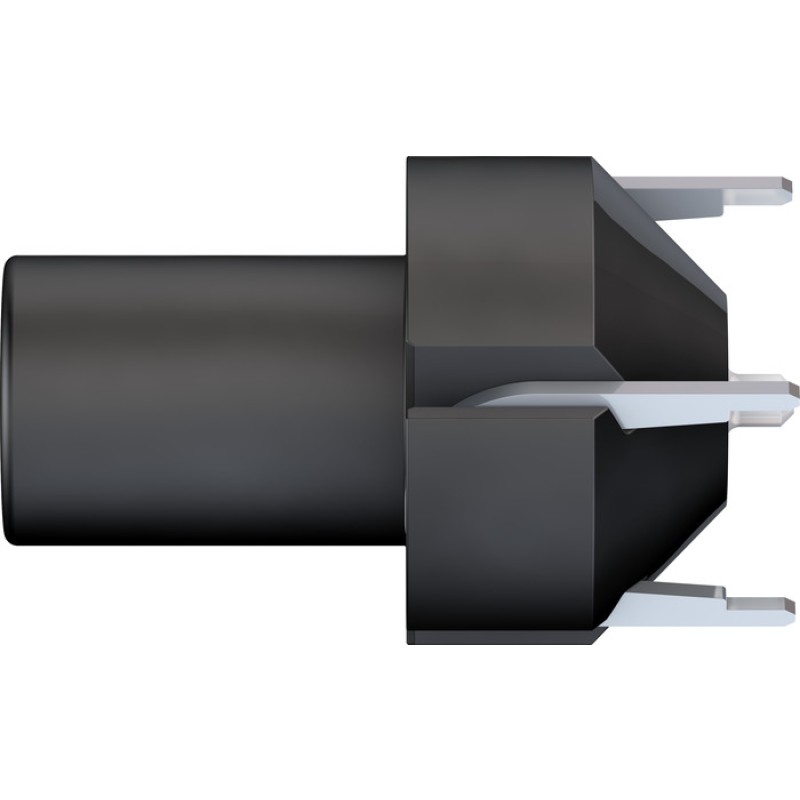

For mounting on vertical printed circuit boards, touch-protected and insulated according to IEC/EN 61010-1. The socket is directly soldered onto printed circuit boards. Fixed Ø 4 mm socket, to fit spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass.Connection: Ø 2 mm round pin and contacts for mounting on printed circuit boards.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 66.9032-21 |
| Manufacturer | STAUBLI |
| Type | Xela-4 |
| Model | 4mm Panel-mount Socket Black |
| Colour | 21 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Mah 565 |
