Details
STAS-20
Long Description

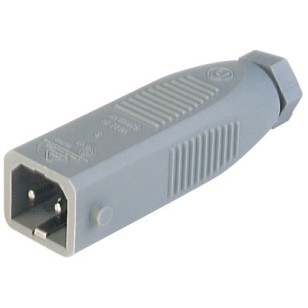

Cable plug with strain relief
Additional Information
| SKU | 931265-106 |
|---|---|
| Manufacturer | HIRSCHMANN |
| Accessories To Order Separately | Safety Brackets Stasi 2, order No. 732 044-000 |
| Conductor Size | Max. 1.5 Mm2 |
| Contact Bearer | Ul 94 V-0 |
| Contact Bearer Color | Black |
| Contact Bearer Material | Pa |
| Contact Material | Cu Zn |
| Contact Resistance | <= 5 Mohm |
| Contact Surface Material | Sn |
| Housing | Ul 94 Hb |
| Housing Color | Grey |
| Housing Material | Pa |
| Number Of Contacts | 2 + Pe |
| Pin Dimensions | 2 Mm |
| Pollution Severity | 3 |
| Protection Class (iec 60529) | Ip 54 |
| Rated Current | Dc 10 A / Ac 16 A |
| Rated Voltage | Ac/dc 250 V |
| Temperature Range | -30 ºc To +90 ºc |
| Type | Cable Plug |
| Type Of Contact | Male |
| Type Of Termination | Screw |
| Ul | Ul |
